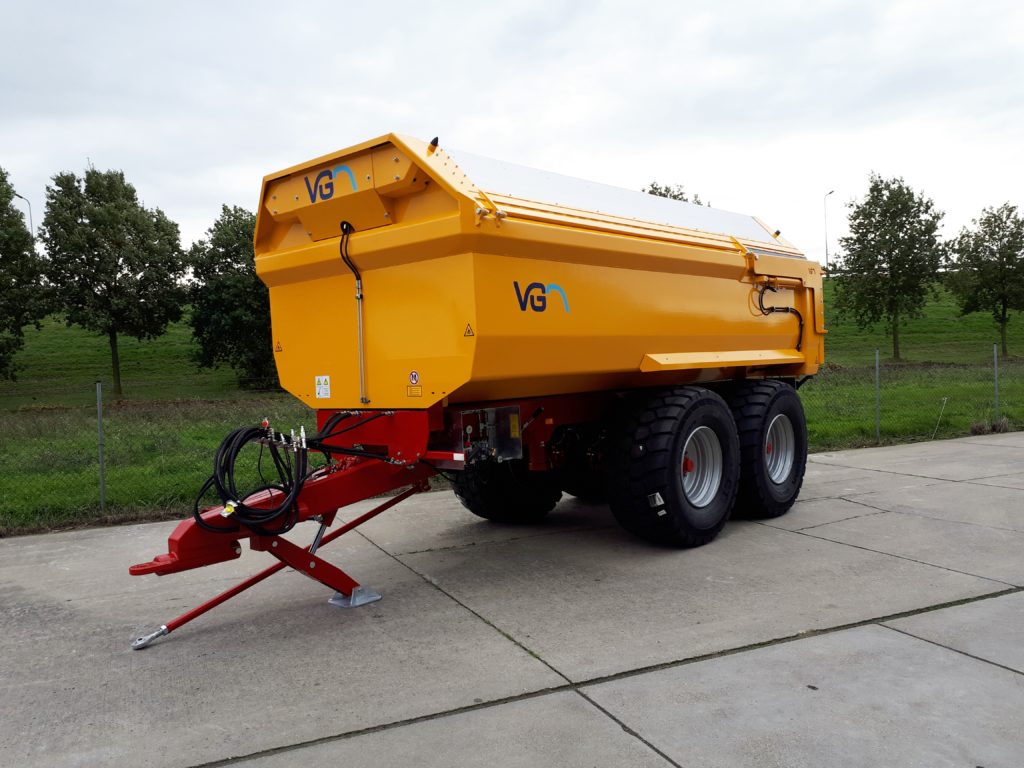

VGM Sand tipping trailer ZK22-2 L

arrow_backReturn to transportation

The ZK 22-2L sand tipping trailer from VGM is a robust tipping trailer, solidly – and with an eye for detail – built and particularly suitable for heavy work




22-2 L

Tandem axle heavy transport tipping trailer

10 hole BPW shafts 150 mm

410 x 180

Hydraulic support leg, operated from the tractor

Tapered container, therefore better release

Plate thickness of the loading bucket 6mm Hardox400

Four wheels hydraulically braked

Width lighting front and rear

Rotatable towing eye

Rear towbar

Hose support on the drawbar

Rubber suspension drawbar

Screwed mudguards on the loading platform

container dimensions

5250 int. x 2300 int. x 1060 int.

Grease fittings of the main axis central

Tipping cylinder mounted in gimbal suspension

Track width

1950 mm

  • Hydraulic drawbar suspension
  • Hydraulic towing foot with hand pump
  • Hydraulic towing foot with six-way crane
  • Air brake
  • Air brake combined with hydr.
  • Air brakes + ALR valve
  • Hydraulic forced steering
  • Lockable control box
  • 2 work lights on the back
  • Follower plug on the back
  • LED-lighting
  • Reverse zoomer
  • Plastic tool box
  • Scharmüller K80 towbar
  • Scharmüller steering ball joint K50
  • prepare PVG
  • grease fittings fusee central
  • Water barrier screwable ZK-2
  • Sprayed In company colors
  • Automatic lubrication system
  • ZK22-2 aluminum roof hatches type MK5
  • Asphalt valve
  • Command steering rod with quick release
  • Scoop support at the bottom of the container
  • Dredger gags left and right
  • ZK-2 Bumper foldable TÜV-PVG
  • Bumper ZK-2
  • Wide spread chassis 1650
  • Hydr. Forc. steering 1650 Tandem set

VGM Sand tipping trailer ZK22-2 L
